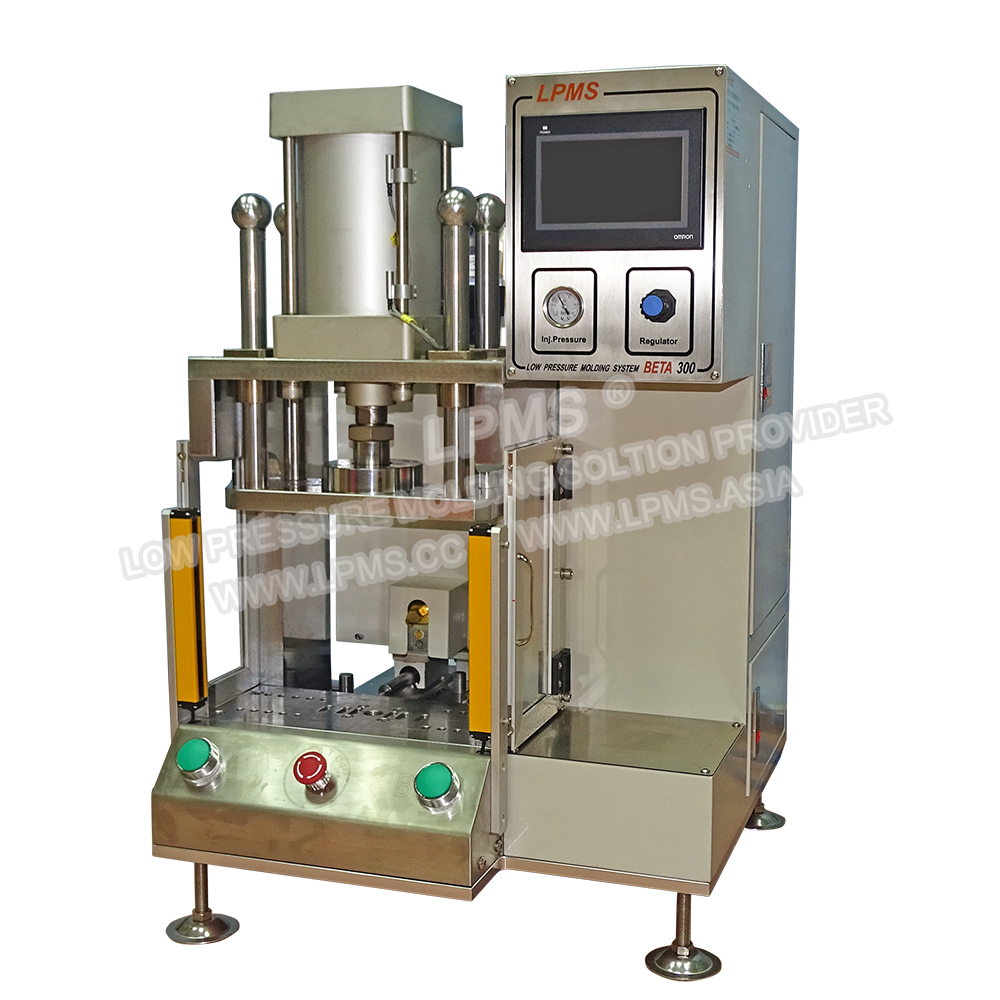

Side Injection Table Top Machine

BETA 300

Side Injection Table Top Machine

Intuitive touch screen operation.
7 liter melting tank integrated into machine.
LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.
The gear pump is made of hard-wearing material，which is stable，injection volume accuracy ±0.1g，maximum shot size is 5g/s.
Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.
Over temperature alarm and automatic heating stop functions.
Safety light curtain and two safety buttons protect workers during the operation.
Ejection system.

Application

LPMS^? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

The benefits of side injection is that when one large cavity being encapsulated from the center of the mold, which can prevent the gate mark from the center of product.

Specification

Machine Size / Weight	29.13 in x 37.40 in x 37.79 in / 595 lbs
Working Station Height	Optional
Packing Size / Weight	31.50 in x 41.34 in x 46.06 in / 661 lbs
Melting Tank	Melt on demand 7 liter x 1
Auto Feeding System	Optional
Maximum shot size	5.8 g / RPM
Injection rate	5 grams / second
Gun Model & Tip	LPMS-G02 x 1 / 36.4° or 90°
Heated Hose	N/A
Electricity	200-240VAC / 1 Phase / 50 Hz
Temperature Control Zones	2
Temperature Range	Ambient up to 250°C / 485°F
Max .Power	5 Kw
Pump Motor	120 W
Min. Air Pressure	0.5 MPa \| 73 Psi
Air Consumption	3.5ft³ / min
Clamping	Air Cylinder
Clamping Force	1.2 Tons
Clamping Stroke	Std.4.92 in (Option 5.91 in)
Ejector	Air Cylinder
Ejector Force	980 N
Ejector Stroke	0.39 in
Control System	7”HMI , PLC controlled
Safety Protection	dual palm buttons , light curtain , emergency stop buttons
Mold Set Size	7.09 in x 3.94 in x 5.91 in / 35.27 lbs
Max. Mold Set Size	9.84 in x 4.72 in x 5.91 in
